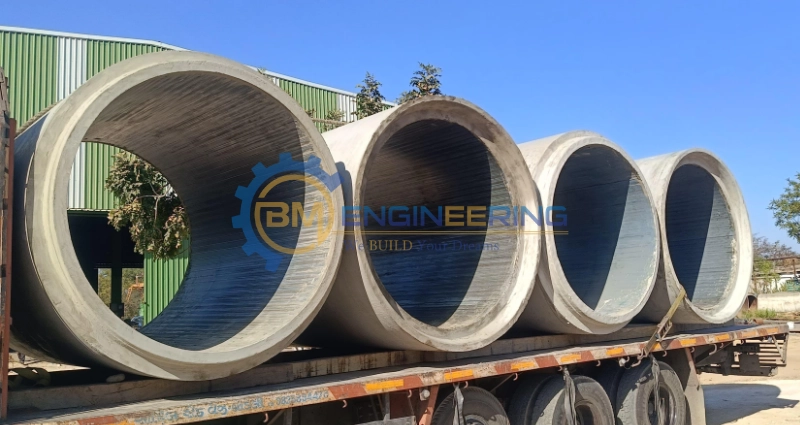

BM-2500 Vertical Vibration Casting Concrete Pipe Making Machine is one of the most advanced Concrete pipes making technology in the world, which integrate the technology of mechanical, electric, Hydraulic and Semi and Fully Automatics. The machine can produce products in BM-2500 size 600–2500 mm and a length of up to 2.5 meters.
The BM-2500 Vertical Concrete Pipe Making Machine produces large-diameter concrete pipes using high-frequency vibration and hydraulic operation. It supports pipe diameters from 600 mm to 2500 mm and lengths up to 2.5 metres, making it ideal for precast concrete infrastructure applications.
Constructed with a reinforced machine structure to provide the stability and strength required for demanding concrete pipe production applications.
The vertical forming arrangement is designed for larger concrete pipe production, supporting efficient moulding within an organized manufacturing setup.
Controlled vibration during forming helps distribute and compact concrete effectively, supporting consistent pipe density and shape.

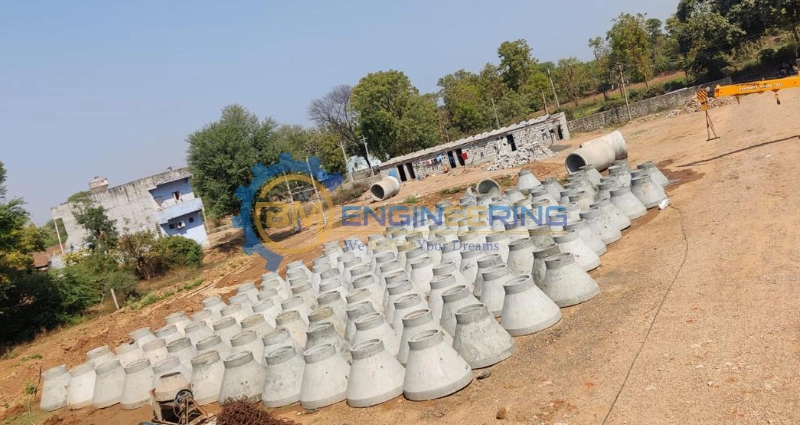

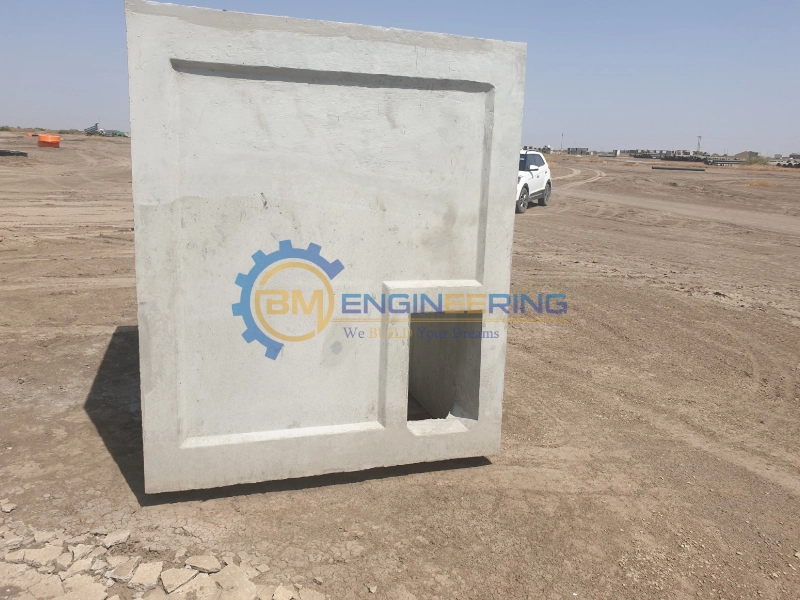

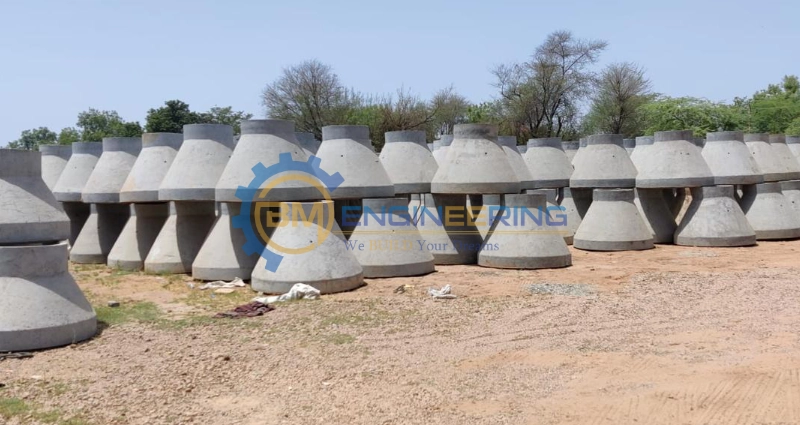

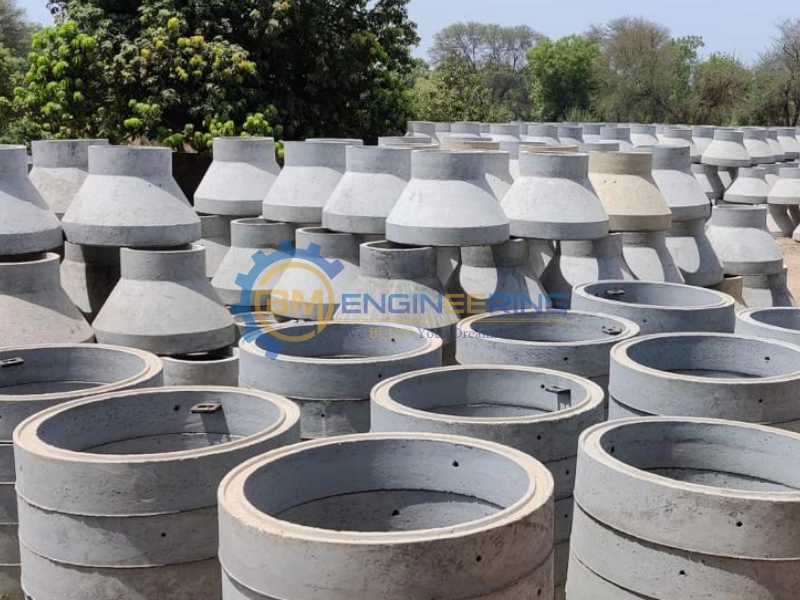

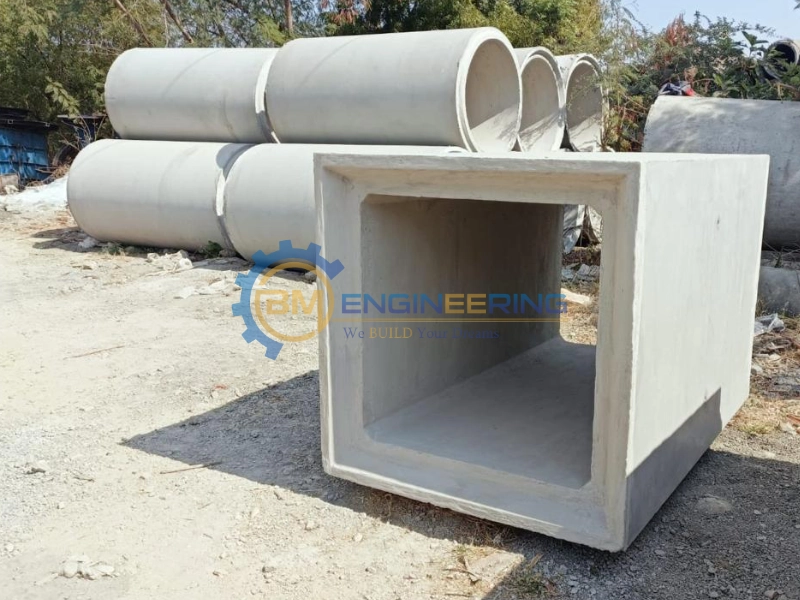

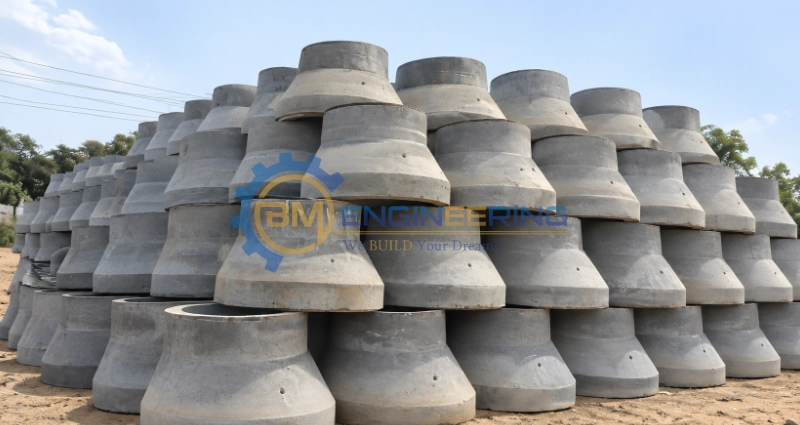

The BM 2500 is suited to a wide range of concrete pipe manufacturing requirements for infrastructure, drainage and construction projects.
Integrated hydraulic functions support controlled machine operation and coordinated movement throughout the concrete pipe forming cycle.
Engineered for demanding production environments, the BM 2500 combines a practical machine layout with dependable operation for regular manufacturing use.

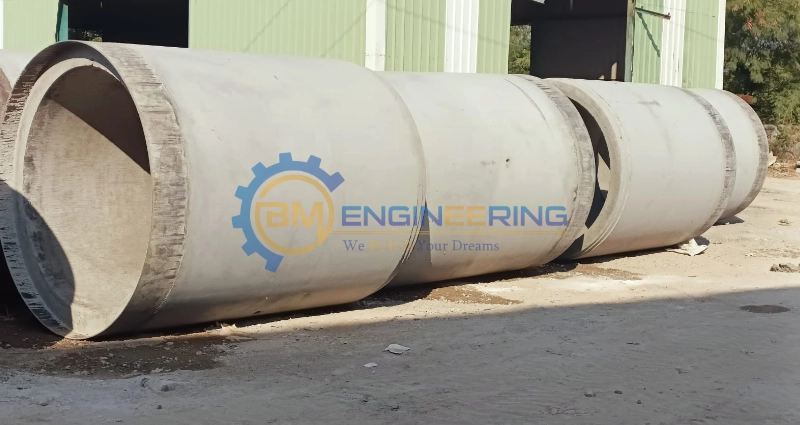

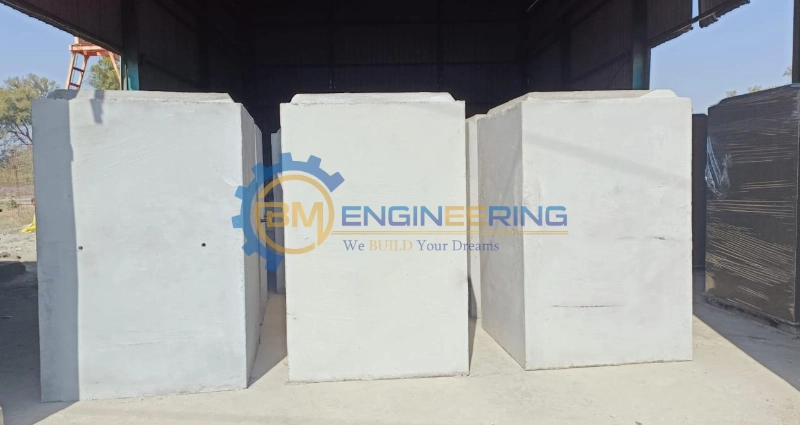

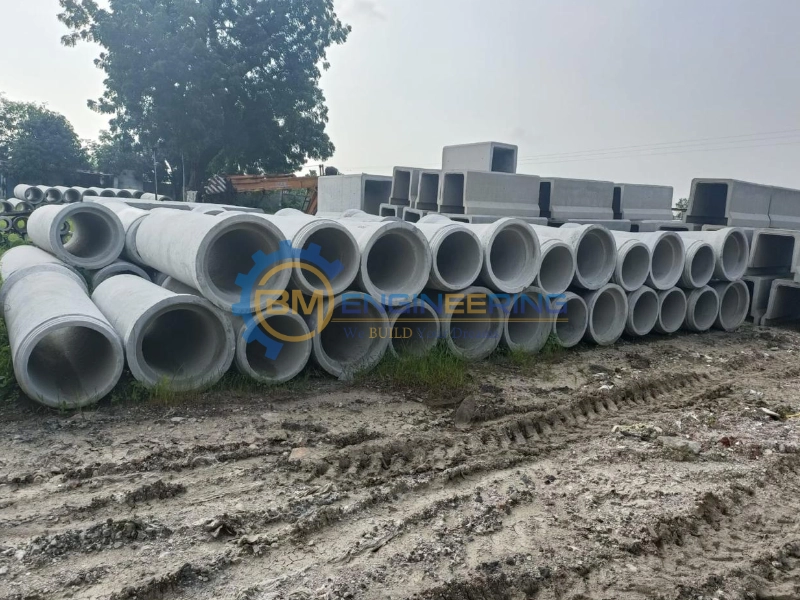

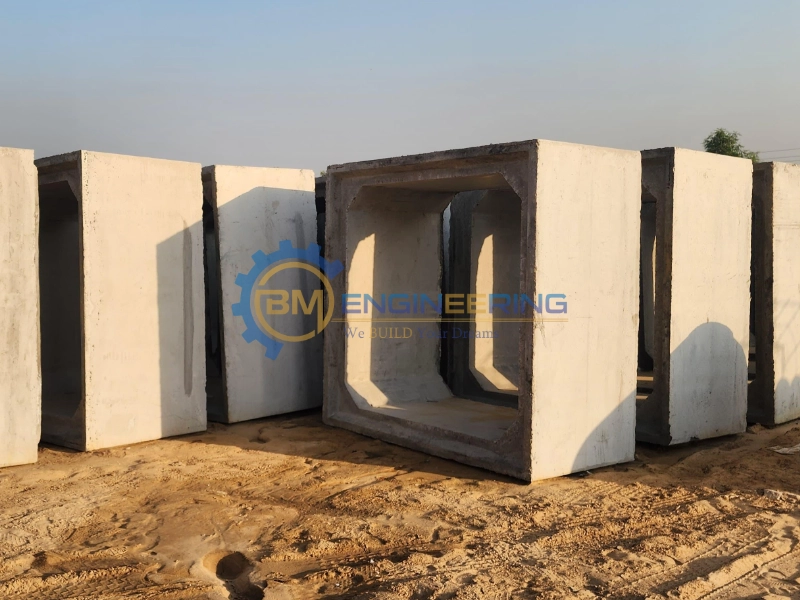

| Measurement | Round Pipe Length: 2500 mm | 8 Hours | Box Culvert Length: 2000 mm | 8 Hours |
|---|---|---|
| 300 mm | 70 / 8 hr | — |
| 450 mm | 60 / 8 hr | — |
| 600 mm | 55 / 8 hr | 50 / 8 hr |
| 800 mm | 50 / 8 hr | 40 / 8 hr |
| 900 mm | 40 / 8 hr | 35 / 8 hr |
| 1000 mm | 34 / 8 hr | 30 / 8 hr |
| 1200 mm | 30 / 8 hr | 25 / 8 hr |
| 1400 mm | 24 / 8 hr | 20 / 8 hr |
| 1600 mm | 18 / 8 hr | 18 / 8 hr |
| 1800 mm | 14 / 8 hr | 15 / 8 hr |
| 2200 mm | 10 / 8 hr | 12 / 8 hr |
| 2400 mm | 8 / 8 hr | 10 / 8 hr |

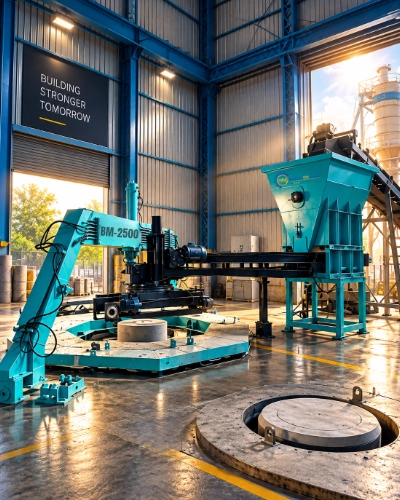

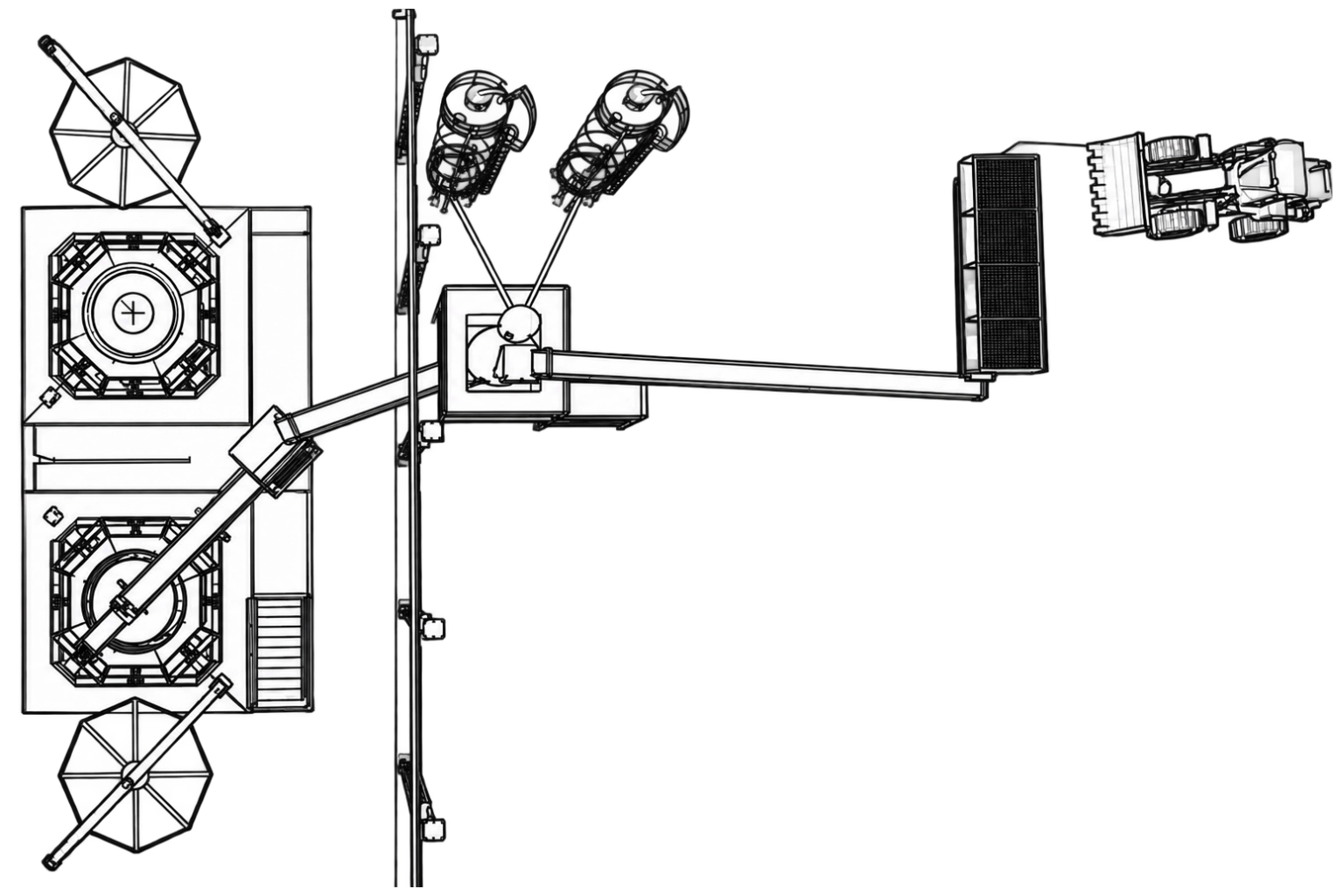

A practical plant arrangement designed around the BM 2500 Vertical Concrete Pipe Making Machine, supporting efficient material flow, production, handling and finished pipe storage.
The BM 2500 Vertical Concrete Pipe Making Machine combines robust structural components with precision forming, vibration, feeding, hydraulic and control systems to support reliable and consistent concrete pipe production.

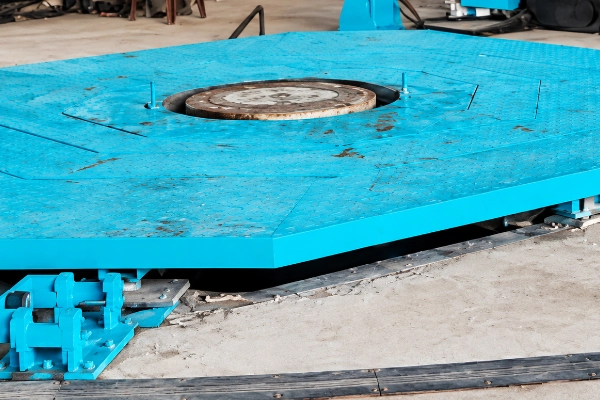

The robust structural frame forms the foundation of the BM 2500 machine, providing stability and support for the complete production assembly. It is designed to maintain structural rigidity during continuous concrete pipe manufacturing operations.

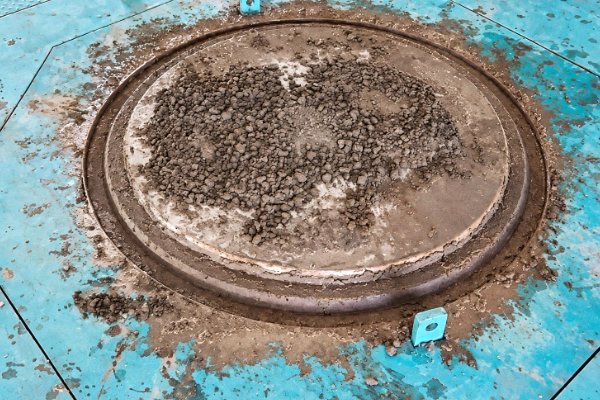

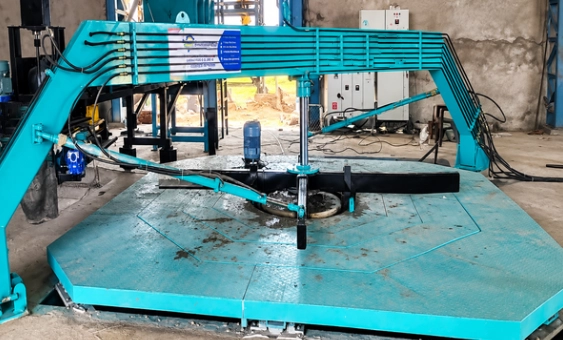

The electrically actuated vibration system provides controlled vibration during pipe formation, helping achieve effective concrete compaction. Adjustable vibration frequency supports consistent forming performance for different production requirements.

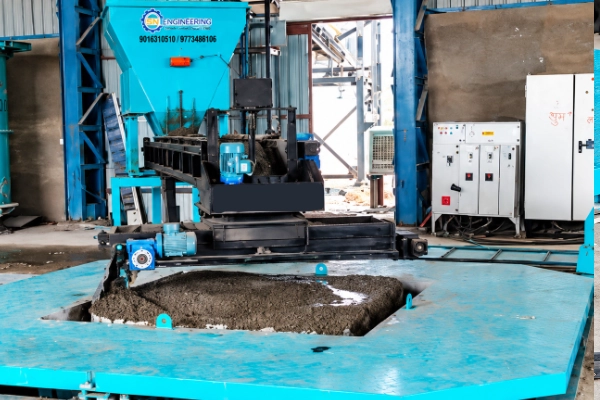

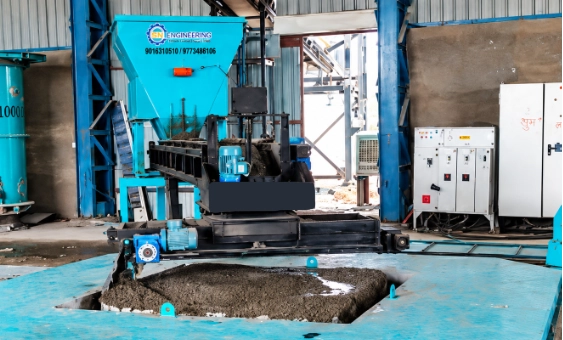

The concrete feeding arrangement incorporates a belt distributor to deliver and distribute concrete into the forming area. It supports smooth material flow and uniform concrete distribution during the pipe production cycle.

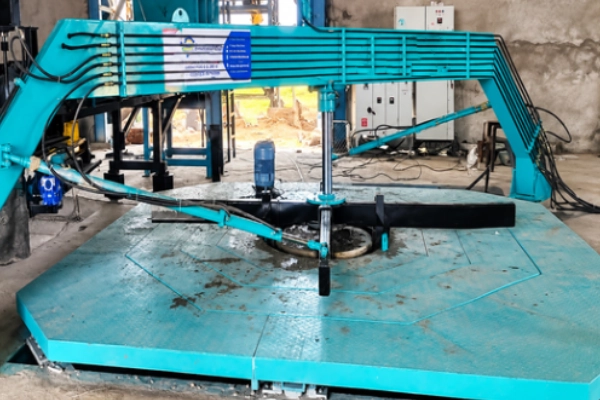

The integrated hydraulic system supports important machine functions, including conveyor movement, pressing and turning operations. It helps coordinate machine movements for smooth and reliable production performance.

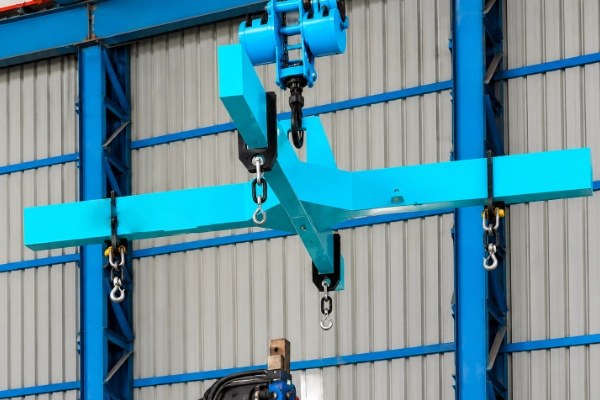

The mechanical lifting system is designed to accommodate different product lengths during the manufacturing process. It supports efficient product handling while maintaining a practical machine operating arrangement.

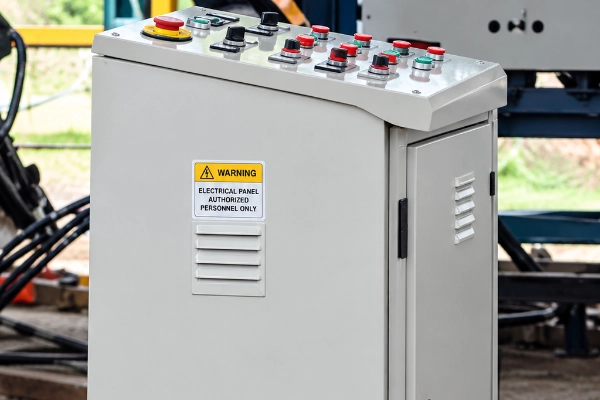

The centralized PLC control panel with digital display provides a convenient interface for machine operation and monitoring. It allows operators to manage important machine functions through a centralized control system.

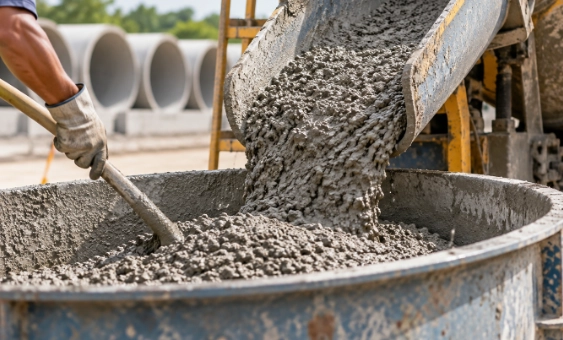

Prepare the required concrete mix according to the selected pipe specification and production requirement, maintaining a suitable consistency for vertical pipe forming.
Feed the prepared concrete into the mould through the machine feeding arrangement while the forming system builds the pipe profile.
Controlled high-frequency vibration compacts the concrete around the core, helping achieve dense, uniform and dimensionally consistent pipe formation.

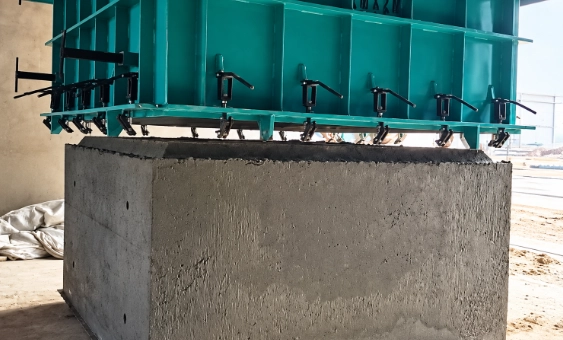

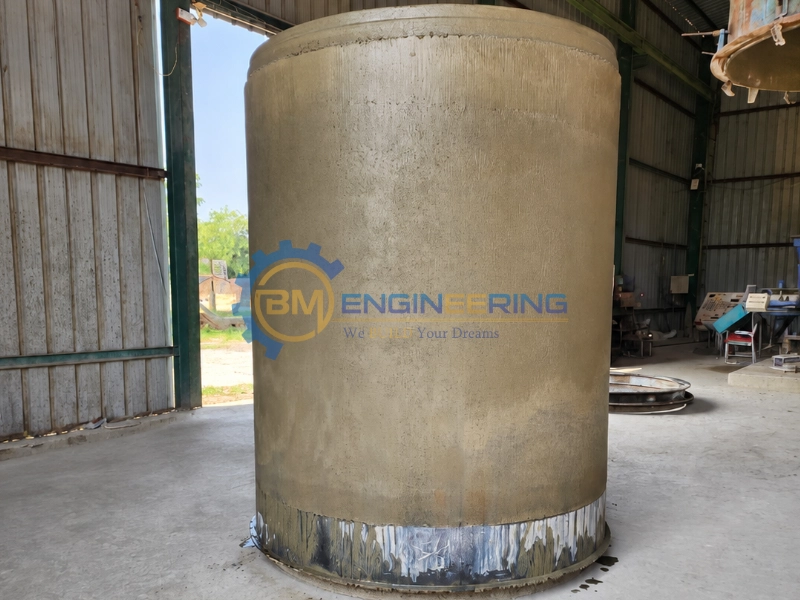

Release the mould after forming and move the newly produced pipe carefully to the designated handling and curing area.
The BM-2500 Vertical Concrete Pipe Making Machine is designed for manufacturers seeking a controlled and repeatable approach to concrete pipe production. Its vertical vibration casting system, integrated hydraulic functions, and PLC-based control system help coordinate the forming cycle and streamline machine operation. This combination supports consistent production processes and helps manufacturers maintain reliable product quality across different pipe manufacturing requirements.
